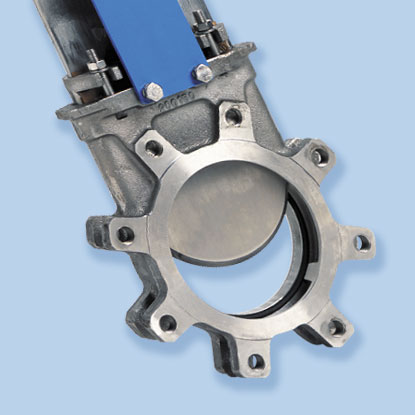

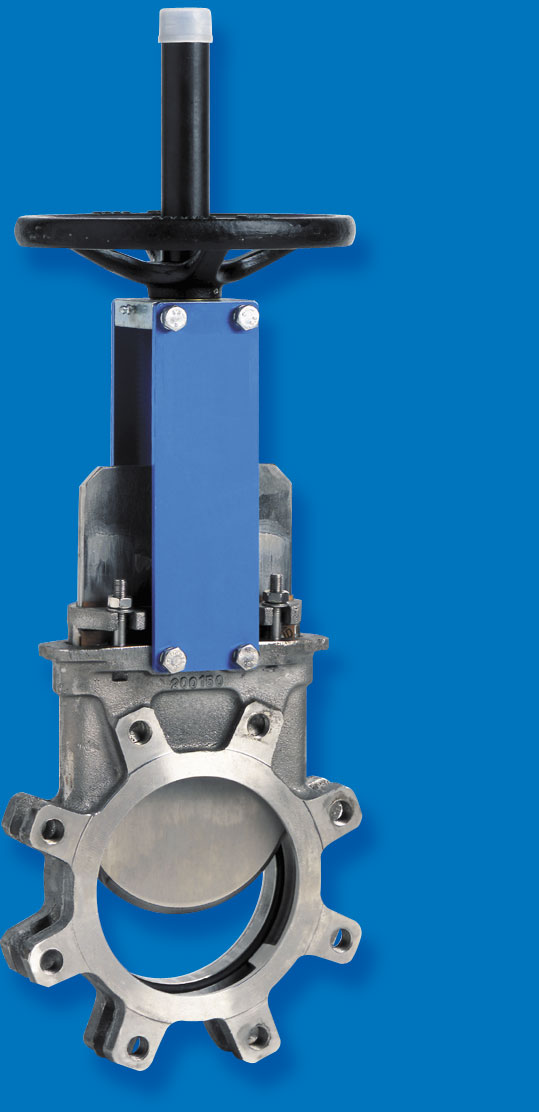

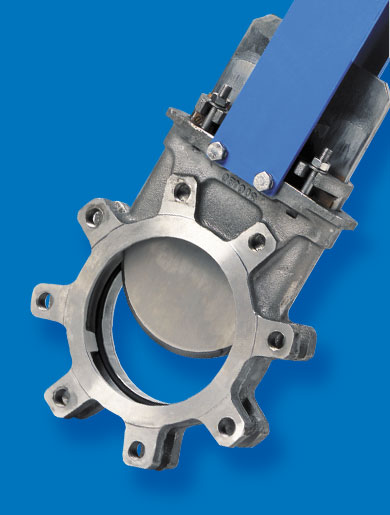

GT KNIFE GATE VALVE, LUG TYPE

GT KNIFE GATE VALVE,
LUG TYPE

The GT model is a valve for general applications, designed according to MSS SP-81 and TAPPI-TIS 405 Standards to handle fluids with suspended solids.

Mainly used in industries such as:

  • pulp and paper

  • wastewater treatment plants

  • Power plants

  • the food and agriculture industry

  • mining

  • chemical plants










General characteristics

Sizes:
DN 50 through DN 600 (larger diameter upon request)

Pressures:
DN 50 to DN6000: 10 Kg/cm²

Standard flange connection:
EN1092 PN10 and ANSI B16.5 (class 150)











STANDARD CONSTRUCTION MATERIALS
Type
Body
Slide
Seat
Gland-packing
HIM

GG-25
Cast iron
304-Aisi
Metal
PTFE
Synthetic
HIE
EPDM
IIM
CF8M
Stainless Steel
316-Aisi
Metal
IIE
EPDM


Other materials upon request.

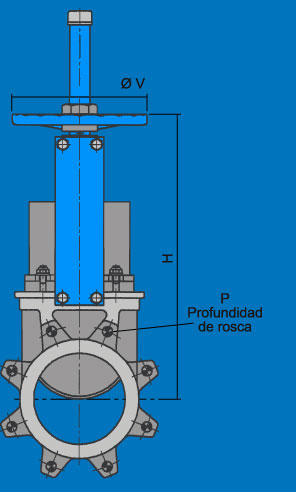

GENERAL DIMENSIONS
DN
50
80
100
125
150
200
250
300
350
400
450
500
600
Face to face
48
51
51
57
57
70
70
76
76
89
89
114
114
V
225
225
225
225
225
310
310
410
410
410
550
550
550
H
281
328
373
420
449
579
645
732
811
891
1034
1128
1265

Larger dimensions upon request.
Dimensions and drawing without compromise.
Bidapro reserves the right of modifying them at any time and without giving previous notice.



DRILLED HOLE FLANGES
DN

50
80
100
125
150
200
250
300
350
400
450
500
600

DIN
PN-10
2
2
2
2
2
2
4
4
6
6
6
6
6
2
6
6
6
6
6
8
8
10
10
10
14
14
M
M.16
M.16
M.16
M.16
M.20
M.20
M.20
M.20
M.20
M.24
M.24
M.24
M.27
P
11
9
9
10
10
12
12
12
15
15
15
22
22
ANSI

2"
3"
4"
5"
6"
8"
10"
12"
14"
16"
18"
20"
24"

ANSI-150 Lbs
2
2
2
2
2
2
4
4
4
4
6
6
6
2
2
6
6
6
6
8
8
8
12
10
14
14
M UNC
5/8"
5/8"
5/8"
3/4"
3/4"
3/4"
7/8"
7/8"
1"
1"
1 1/8"
1 1/8"
1 1/4"
P
7/16"
11/32"
11/32"
3/8"
3/8"
15/32 "
15/32 "
15/32 "
19/32"
19/32"
19/32"
7/8"
7/8"



Taladros roscados Threaded drill holes Taladros pasantes Threaded drill holes

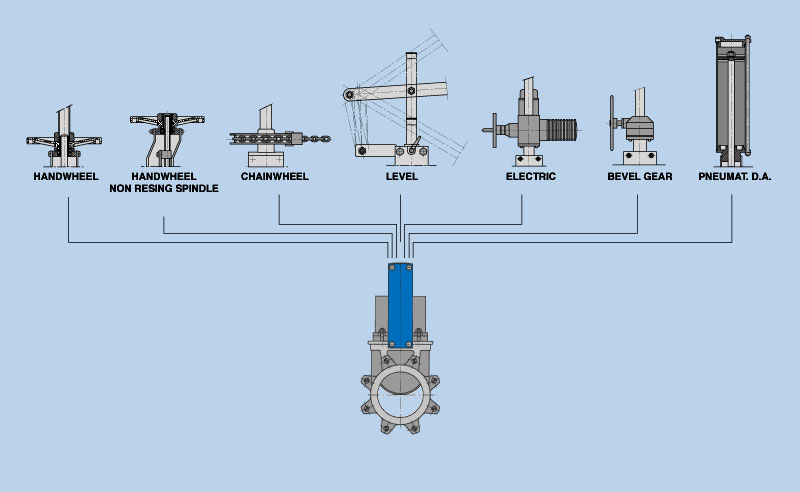

ACTUATORS



TYPE OF SEALING







Metal to metal - Type 1


Resilient - Type 2 (standard)


Resilient - Type 3 (reinforced)


Deflecting cone15º
