VT TELESCOPIC VALVE



VT – TELESCOPIC VALVE.

Round port VT telescopic valve with flanged connection to pipe lines.

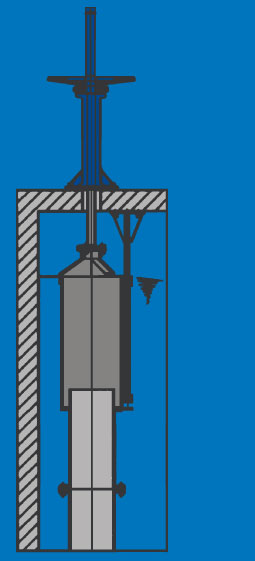

This design allows water flow control, placing obturator in height



Mainly used for the
following applications in:

  • wastewater treatment plants

  • hydraulic systems where the level should be regulated.








General characteristics



Telescopic valve type VT, seal all round port and obturator with LINEAR sliding system.
Fabricated and mounted on drilled flange pipe line according to DIN PN10.
Different construction materials and sealing by means of elastomer joint.

Standard manufacture dimensions DN 200 through DN 500 mm. Other dimensions, upon request.
Standard body length is equal to three times the diameter of the valve. Other dimensions, upon request.










CONSTRUCTION MATERIALS
Body Obturator Sealing Spindle Extensions Guide support
304 Aisi Stainless Steel 304 Aisi Stainless Steel EPDM 303 Aisi 304 Aisi 304 Aisi
316 Aisi Stainless Steel 316 Aisi Stainless Steel EPDM 303 Aisi 316 Aisi 316 Aisi

Other materials such as DUPLEX, AISI 904L and so on can be manufactured on request.



ACTUATOR
Manuals Automatics
RISING SPINDLE HANDWHEEL ELECTRIC SERVOMOTOR
NON-RISING SPINDLE HANDWHEEL PNEUMATIC CYLINDER
RISING SPINDLE REDUCER HYDRAULIC CYLINDER
NON-RISING SPINDLE REDUCER

Actuators can be placed directly either on upper frame or with extension systems and column at specified heights.

Other types of actuators upon request.
