GRC ROUND AND SQUARE PORT KNIFE GATE VALVES

GRC ROUND AND SQUARE
PORT KNIFE GATE VALVES

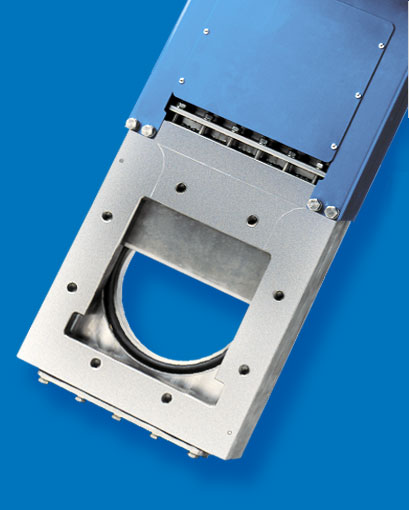

The GRC model is a heavy duty valve suitable for using under the most heavy conditions and designed to handle high contaminated waste. This valve with round inlet and square outlet (larger than the inlet) and inner sliders assures non-jamming and is suitable for use in recycle applications such as junk or sand traps of pulpers, high consistency cleaners … or as silo outlet for solid material.

Mainly used in industries such as:

  • pulp and paper







General characteristics

Sizes:
De 100 through DN 600 (larger diameter upon request)

Pressures:
De 100 to DN 400: 7 Kg/cm²
De 500 to DN 600: 4 Kg/cm²

Standard flange connection:
EN1092 PN10 and ANSI B16.5 (class 150)











STANDARD CONSTRUCTION MATERIALS
Type
Body
Slide
Seat
Gland-packing
HIM

5275JR
Steel

304-Aisi
Metal
PTFE
Synthetic
HIE
EPDM
IIM
CF8M
Stainless Steel
316-Aisi
Metal
IIE
EPDM


Other materials upon request.

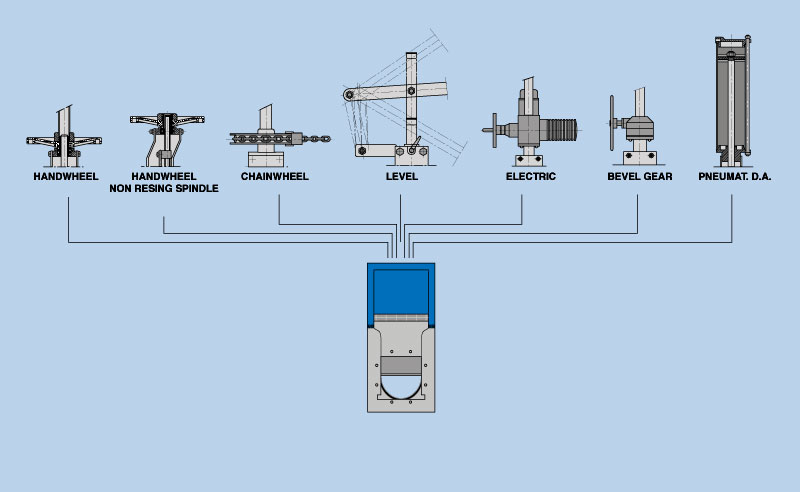

ACTUATORS



TYPE OF SEALING







Metal to metal - Type 1


Resilient - Type 2 (standard)


Resilient - Type 3 (reinforced)


Deflecting cone15º
    Attached archives:

Further information on PDF PDF [27Kbs.]
