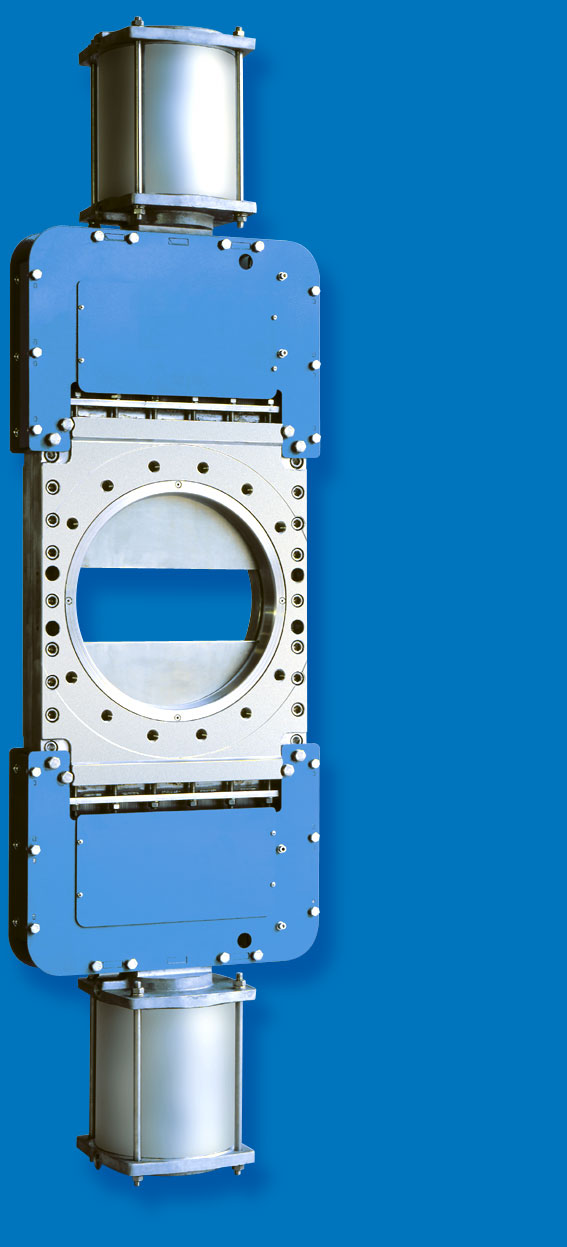

GDT DOUBLE GATE KNIFE GATE VALVE

GDT DOUBLE GATE
KNIFE GATE VALVE

The GDT model is a valve suitable for using under the most heavy conditions and specially designed to handle high concentrated or contaminated fluids. Full port with reinforced rings and two opposite gates joined full in the centre of the port.

Bi-directional use with quick opening and closing stroke. This valve is suitable for high concentration on stock or handling waste of pulpers and high consistency cleaners.

Mainly used in industrie such as:

  • pulp and paper









General characteristics

Sizes:
De 100 through DN 600 (larger diameter upon request)

Pressures:
De 100 to DN 250: 10 Kg/cm²
De 300 to DN 400: 6 Kg/cm²
De 450: 5 Kg/cm²
De 500 to DN 600: 4 Kg/cm²

Standard flange connection:
EN1092 PN10 and ANSI B16.5 (class 150)









STANDARD CONSTRUCTION MATERIALS
Type
Body
Slide
Seat
Gland-packing
HIM

5275JR
Steel

304-Aisi
Metal
PTFE
Synthetic
HIE
EPDM
IIM
CF8M
Stainless Steel
316-Aisi
Metal
IIE
EPDM


Other materials upon request.



ACTUATORS

    Attached archives:

Further information on PDF PDF [27Kbs.]
