CS STOP LOGS

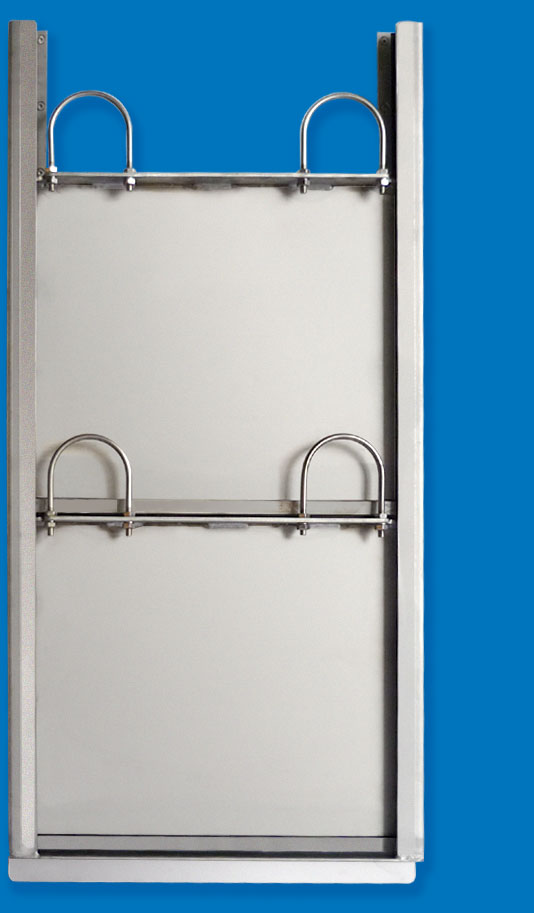

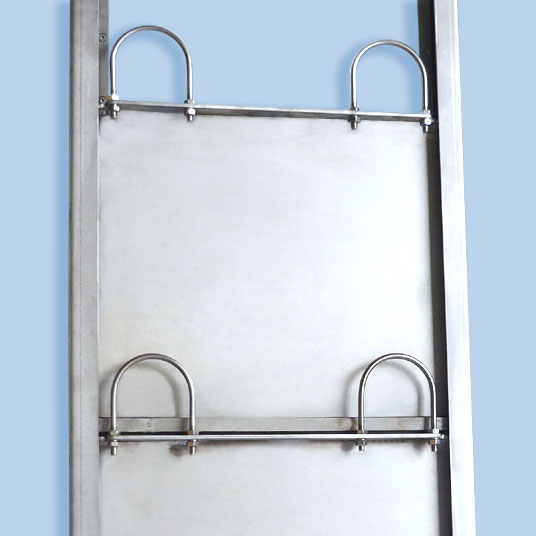

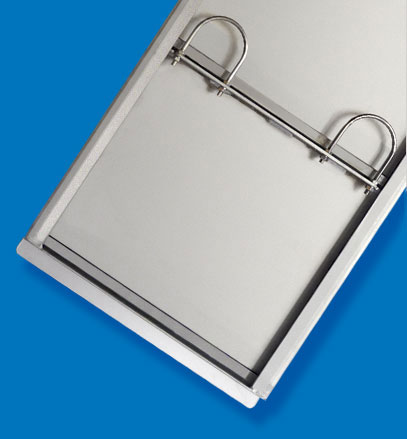

CS – STOP LOG PENSTOCKS

CS Stop Log penstock and seals on 3 sides, open channel and wall-mounted in order to obturate or regulate the flow.

Mainly used for the following applications in:

  • wastewater treatment plants

  • drain manifolds

  • urban small chest

  • storm tanks

  • desalination installations

  • irrigation installations or any other type of hydraulic work where the flow has to be controlled.








General characteristics

Square or rectangular port penstock sealed on 3 sides either embedded in concrete or wall-mounted.

Different construction materials, tightness by elastomer joint and guided system with sliders in order to reduce the coefficient of friction.

Standard manufacturing dimensions from 200 x 200 up to 2000x 2000 mm.
Other applications upon request.





CONSTRUCTION MATERIALS
Frame Module Seal Sliders
304 Aisi Stainless Steel 304 Aisi Stainless Steel EPDM Polyethylene
316 Aisi Stainless Steel 316 Aisi Stainless Steel EPDM Polyethylene
EN AW 5754 H11 Aluminium EN AW 5754 H11 Aluminium EPDM Polyethylene
ST37 Steel ST37 Steel EPDM Polyethylene


Other materials such as DUPLEX, AISI 904L and so on can be manufactured on request.



WORKING CONDITIONS


Uni-directional closing system penstock and working pressures according to the penstock height.

OTHER BI-DIRECTIONAL APPLICATIONS UPON REQUEST.



TIGHTNESS TOLERANCE

According to the American and European Standards.
AWWAC561-04 - 1.24 l/min per seal linear meter.
Din 19569-4 Class 5 - 0.02 l/sec. per seal linear meter.



ACTUATORS

Optional : a DERRICK BEAM system used for introducing or taking out modules.

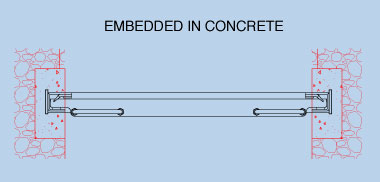

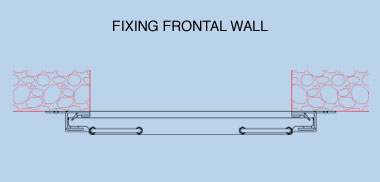

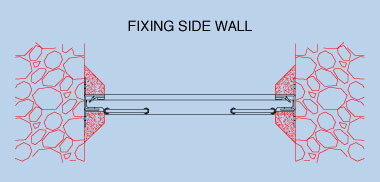

TYPES OF ASSEMBLY
