CFL SWING CHECK GATE

CFL - SWING CHECK GATE

Swing check gate wall-mounted with one-way fluid intended to prevent backflow and installed at the end of a line.

Mainly used for the following applications in:

  • drain manifolds

  • urban small chest

  • storm tanks


General characteristics

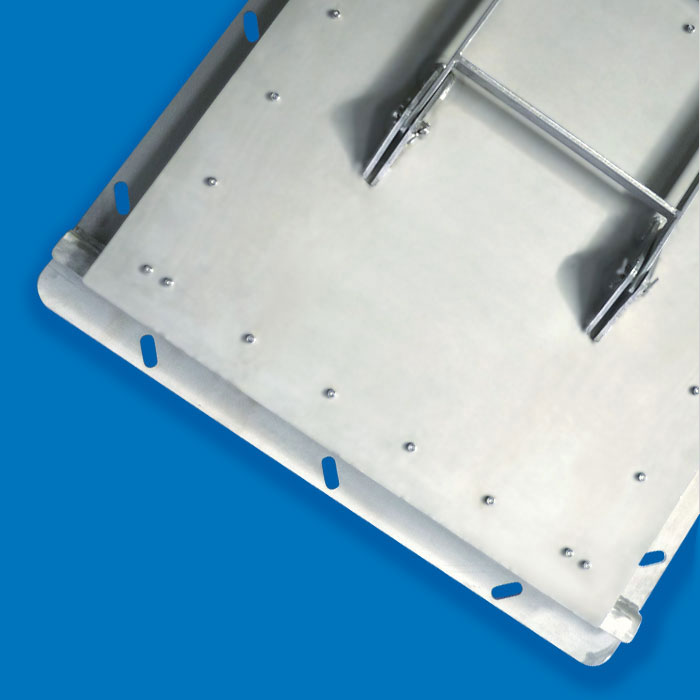

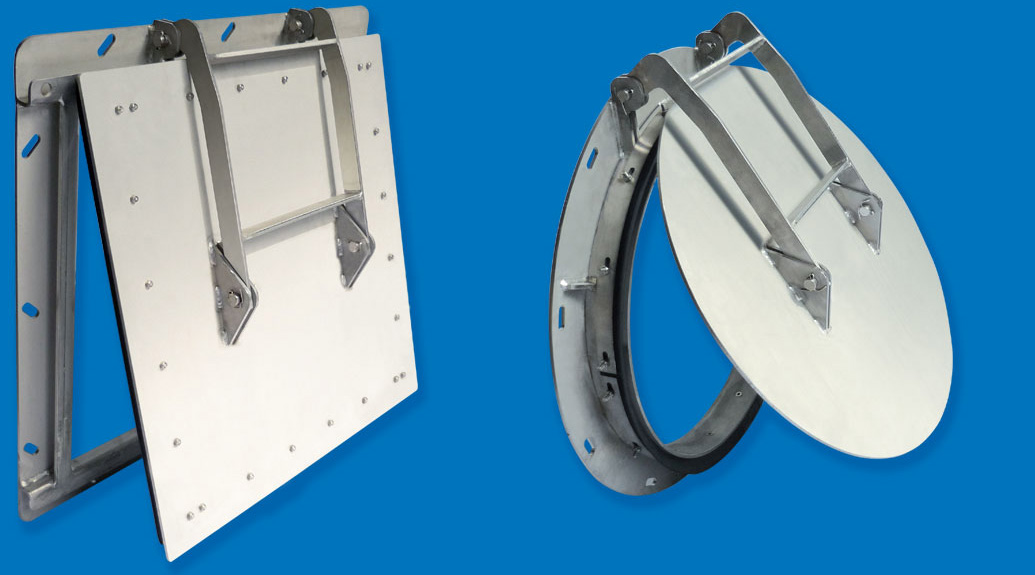

Fabricated square or round port CFL SWING CHECK wall –mounted. Design with double knuckle joint system on swing check gate to obtain an even back-up on the closing and securing a suitable tightness.

Optional counterweight for adjustment and control when the opening and closing time .

May include as well electric and hydraulic actuators for applications whenever opening or closing should be controlled.


CONSTRUCTION MATERIALS
Frame Swing check gate Seal
304 Aisi Stainless Steel 304 Aisi Stainless Steel EPDM
316 Aisi Stainless Steel 316 Aisi Stainless Steel EPDM
ST37 Carbon Steel ST37 Carbon Steel EPDM

Other materials such as DUPLEX, AISI 904L and so on can be manufactured on request.



DIMENSIONS AND WORKING CONDITIONS


Square port dimensions 200 x 200 through 2000 x 2000 mm.
Round port dimensions DN 200 up to 1500 mm.
Design pressure: 5
mWc.

Other dimensions, pressures or bi-directional fluid applications UPON REQUEST.



TIGHTNESS TOLERANCE

Acceptable leakage equal to 0.02 l./second per joint meter.



PERFORMANCE

Swing check gates are designed to start opening at a minimum pressure of 0.1 and 0.5 mWc depending on sizes
